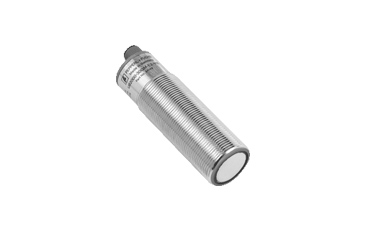

UB2000-30GM-E5-V15 超聲波傳感器現貨供應

???????超聲波傳感器UB2000-30GM-E5-V15，可以設置5種不同的輸出功能，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福超聲波傳感器UB2000-30GM-E5-V15現貨供應

產品特性

? 開關量輸出

? 可以設置5種不同的輸出功能

? 程序輸入

? 同步選項

? 停用選項

? 溫度補償

? 對壓縮空氣不敏感

產品介紹
Single head system

General specifications
Sensing range		80 ... 2000 mm
Adjustment range		120 ... 2000 mm
Dead band		0 ... 80 mm
Standard target plate		100 mm x 100 mm
Transducer frequency		approx. 180 kHz
Response delay		approx. 150 ms
Indicators/operating means
LED green		solid: Power-on flashing: program function object detected
LED yellow		solid: switching state switch output flashing: program function
LED red		normal operation: "fault" program function: no object detected
Electrical specifications
Operating voltage		10 ... 30 V DC , ripple 10 %_SS
No-load supply current		≤ 50 mA
Input/Output
Synchronization		bi-directional 0 level -U_B...+1 V 1 level: +4 V...+U_B input impedance: > 12 KOhm synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
	Common mode operation	max. 30 Hz
	Multiplex operation	≤ 30 Hz / n , n = number of sensors , n ≤ 5
Input
Input type		1 program input, operating range 1: -U_B ... +1 V, operating range 2: +4 V ... +U_B input impedance: > 4.7 kΩ; program pulse: ≥ 1 s
Output
Output type		1 switch output PNP , Normally open/closed , programmable
Rated operating current		200 mA , short-circuit/overload protected
Voltage drop		≤ 2.5 V
Repeat accuracy		≤ 0.5 % of switching point
Switching frequency		≤ 3.3 Hz
Range hysteresis		1 % of the set operating distance
Temperature influence		< 2 % of far switch point
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012
Approvals and certificates
EAC conformity		TR CU 020/2011 TR CU 037/2016
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type		Connector plug M12 x 1 , 5-pin
Degree of protection		IP65
Material
	Housing	nickel plated brass; plastic components: PBT
	Transducer	epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass		140 g
Factory settings
Output		Switch point A1: 220 mm Switch point A2: 2100 mm output function: Window mode output behavior: NO contact
