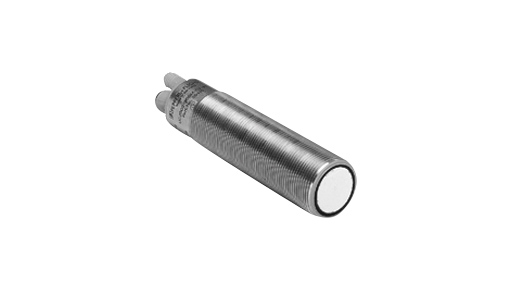

UC2000-30GM-IUR2-V15 超聲波傳感器現貨供應

???????超聲波傳感器UC2000-30GM-IUR2-V15，聲功率和靈敏度可調，溫度補償，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福超聲波傳感器UC2000-30GM-IUR2-V15現貨供應

產品特性

? 參數化界面，用于通過服務程序ULTRA 3000進行傳感器設置的特定應用調整

? 模擬電流和電壓輸出

? 同步選項

? 聲功率和靈敏度可調

? 溫度補償

產品介紹
Single head system

General specifications
Sensing range		80 ... 2000 mm
Adjustment range		120 ... 2000 mm
Dead band		0 ... 80 mm
Standard target plate		100 mm x 100 mm
Transducer frequency		approx. 180 kHz
Response delay		65 ms minimum 195 ms factory setting
Indicators/operating means
LED green		solid: Power-on flashing: Standby mode or program function object detected
LED yellow 1		solid: object in evaluation range flashing: program function
LED yellow 2		solid: object in detection range flashing: program function
LED red		solid: temperature/program plug not connected flashing: fault or program function object not detected
Temperature/TEACH-IN connector		Temperature compensation , Evaluation range programming , output function setting
Electrical specifications
Operating voltage		10 ... 30 V DC , ripple 10 %_SS
Power consumption		≤ 900 mW
Time delay before availability		≤ 500 ms
Interface
Interface type		RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit
Input/Output
Synchronization		bi-directional 0 level -U_B...+1 V 1 level: +4 V...+U_B input impedance: > 12 KOhm synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
	Common mode operation	max. 30 Hz
	Multiplex operation	≤ 30 Hz / n , n = number of sensors , n ≤ 5
Output
Output type		1 current output 4 ... 20 mA 1 voltage output 0 ... 10 V
Resolution		evaluation range [mm]/4000, but ≥ 0.35 mm
Deviation of the characteristic curve		≤ 0.2 % of full-scale value
Repeat accuracy		≤ 0.1 % of full-scale value
Load impedance		current output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm
Temperature influence		≤ 2 % from full-scale value (with temperature compensation) ≤ 0.2 %/K (without temperature compensation)
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003
Approvals and certificates
EAC conformity		TR CU 020/2011 TR CU 037/2016
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type		Connector plug M12 x 1 , 5-pin
Degree of protection		IP65
Material
	Housing	stainless steel (1.4305 / AISI 303) PBT plastic parts
	Transducer	epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass		170 g
Factory settings
Output		evaluation limit A1: 200 mm evaluation limit A2: 2000 mm rising ramp
