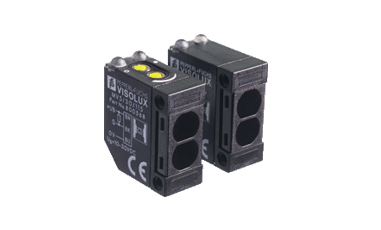

???????倍加福透過式傳感器M5/MV5/30/115,紅外燈設計,故障前指示,防護等級IP67,弗熙堡從事自動化產品經銷多年,一切從客戶實際需求出發,備有大量現貨,竭誠為您服務,您值得選擇!021-51601058
好評系數:

| 產品介紹 | ||
|---|---|---|
| Thru-beam sensor | ||
| System components | ||
|---|---|---|
| Emitter | M5/115 | |
| Receiver | MV5/30/115 | |
| General specifications | ||
| Effective detection range | 0 ... 5000 mm | |
| Threshold detection range | 7000 mm | |
| Light source | IRED | |
| Light type | modulated infrared light , 950 nm | |
| Indicators/operating means | ||
| Function indicator |
LED yellow: switching state LED red: pre-fault indication |
|
| Control elements | Light-on/dark-on changeover switch, sensitivity adjuster | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Output | ||
| Switching type | light/dark on, switchable | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 | |
| Connection | 2 m, 3 x 0.14 mm2, PUR cable | |
| Material | ||
| Housing | Polycarbonate | |
| Optical face | PMMA | |
